Criticality of GNSS resilience to UAV-based operations
Global Navigation Satellite Systems (GNSS) are fundamental to military & security operations and in particular for missions using drones and other Unmanned Aerial Vehicles (UAVs).
The military UAV market has witnessed significant operational deployments over the past 12-18mths with more than 110 countries incorporating UAVs into their armed forces across a range of applications including ISR (Intelligence, Surveillance and Reconnaissance), combat operations, target acquisition, electronic warfare, and logistics.
Any disruption to GNSS can degrade positional accuracy causing UAVs to lose orientation, drift off course, and ultimately derail missions at critical points, leading to loss of situational awareness, loss of valuable data, and even loss of human life.
Evading GNSS jamming attacks is vital, and yet the solutions that currently exist are often designed for military vehicles and too large, heavy and power hungry for deployment on UAVs, as well as being too expensive, often costing more than the UAV they're intended to protect.
Autonomy at sea

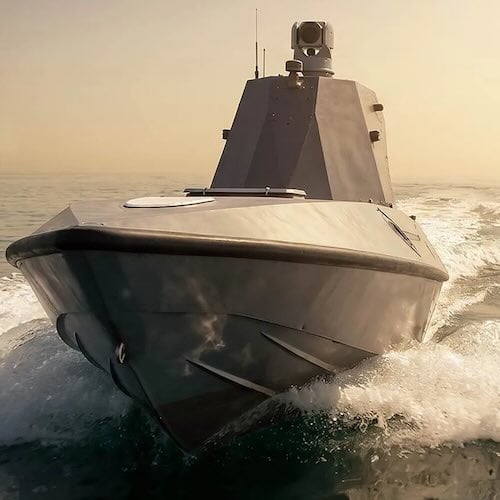

Fully-autonomous operation is also being increasingly introduced at sea given Ukraine’s successful campaign against the Russian Black Sea Fleet - more than 40 countries are expected to be operating unmanned surface vessels (USVs) by 2034.
Most of these are small and medium USVs (primarily surveillance/ISR, mine countermeasures, patrol and interceptor roles), although USVs will constitute a considerable bulk of the US Navy’s overall deployment in the coming years, and by 2045 could represent 45% of their fleet.
CRPxTM Anti-Jamming System – developed with military partners
UAVs and USVs are crucially dependent on absolute realtime location from GNSS, and resilience to countermeasures seeking to undermine this capability.
Helix Geospace’s CRPx has been designed using first-hand knowledge of attack vectors from specialist events (incl. NavWar and Jammertest) and customer requirements in the defence sector to provide best-in-class mitigation of sophisticated jammers.
CRPx has been developed in the UK with full UK/EU/NATO supply chain provenance.
CRPx uniquely delivers resilient GNSS and high positional accuracy in a simple, compact footprint
Unrivalled Resilient GNSS
-
Dual-band (L1/E1, L2/L5/E5a/M-Code)
-
>50dB suppression; J/S >100dB
-
Designed with defence partners to mitigate battlefield jammers incl. in-band, adjacent band, high-power & multi-jamming scenarios (non-blocking)
-
Dovetails with GNSS receiver anti-spoofing algorithms for optimum resiliency
Class-leading Positional Accuracy
-
Beam forms for optimal satellite tracking
-
Auto-adapts to platform motion (pitch and yaw)
-
High phase stability enables use with carrier-phase GNSS (RTK)
-
Combats interference from multipath and clutter (L-band MIL, RADAR signals etc.)
Universal Compatibility & Ultra-low SWaP
-
Easily integrated to UAV/USV designs without needing any complex cabling, bespoke integration, or configuration
-
Compact & lightweight (Ø120mm x 30mm; <500g)
- Ultra-low power (mean <3W; peak <5W)
Engineered for a wide range of applications
Maritime
GNSS is critical for navigation in modern maritime operations but increasingly under threat.
Learn more
Drones (UAVs)
Resilient GNSS in a compact form factor is fundamental to the operation of drones & UAVs.
Learn more
Civil Aviation
Mitigating inadvertent GNSS interference from conflict zones is paramount to ensuring the safety of aircraft and crew.
Learn more
